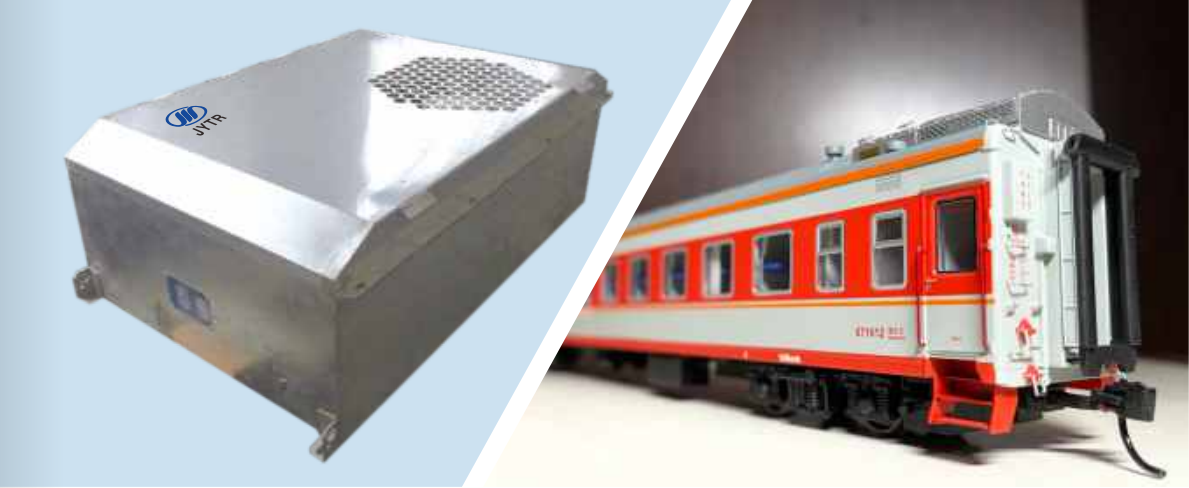

機車空調機組Locomotive HVAC unit
KLP5.0型 | KLP5.0 Model
鐵道機車空調機組是專為鐵道機車車輛研發的，適用于DF4、DF7、DF8、SS3、SS4、SS6等車型。空調機組為頂置單元式，安裝在車輛的兩端司機室頂部，出、回風口均在空調機組的底部，通過短風道與司機室內頂相連通。風道的端部安裝出風柵、回風柵，調整出風柵的導風葉的角度可調節空調的送風方向，控制柜安裝在車內，控制空調機組工作。
Rall locomotive HVAC is applicable for vehicle model: DF4, DF7, DF8, SS3, SS4, and SS6, etc. As roof mount unit typemodel, it is installed on 2 roof ends of drivers cab, The cool air outlet and return air inlet, both at bottom of the HVAC unitare connected with cab root via air duct, At ends ot the air ducts are outlet and iniet air griles. the outlet air direction canbe controlled by adiusting the wind lever angle. The control cabinet is installed within cab to control the HVAC system.
